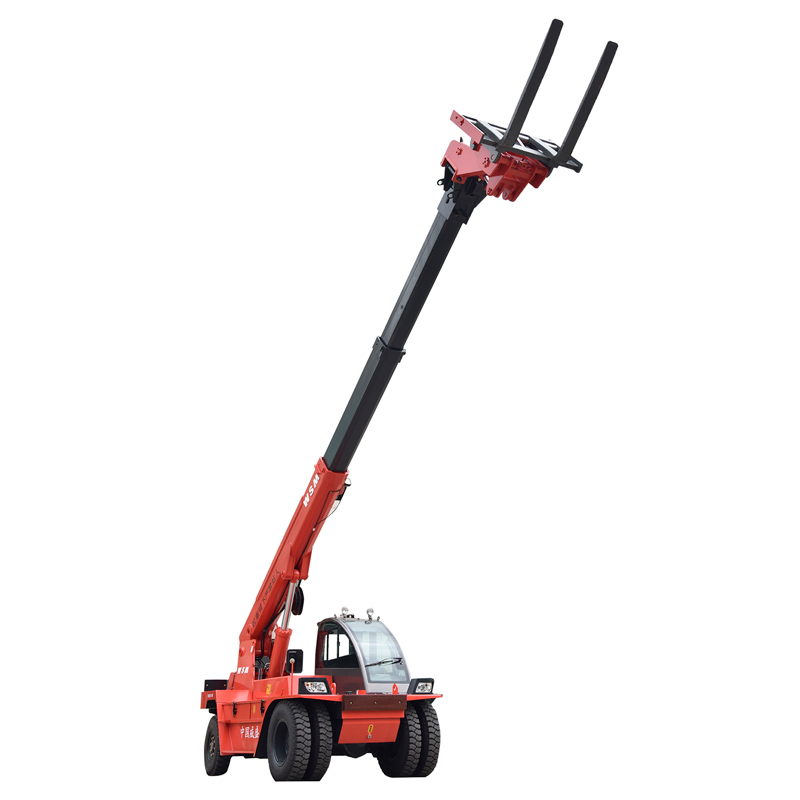

Telehandler is the short for telescopic handler, boom arm loader, front end loader truss boom truck, wheel loader boom and so on. Telehandler machines are a versatile hydraulic lifting unit that is often used in the construction, high altitude rescue and many other sectors. These wheel telescopic loaders have strong lifting power and various lifting forks and fittings. The telescopic boom forklift truck is equipped with a telescopic boom that is adaptable to a wide range of fittings to allow the truck to work and function in different working scenarios. A simple quick hitch design for the heavy duty telehandler allows operators to quickly and safely change the fittings depending on versatile tasks. Thus, Wilson tele-handler can serve in different industries, including the construction, infrastructure, manufacturing, shipping, transportation, refining, utility, quarrying and mining industries. Whether it's the high strength keel boom design that offers reliable service under the most demanding conditions or the convenience and time savings that the dual control console affords you, be assured that Wilson is driven to deliver high quality and value in each boom truck.

Products Details

Product Parameter

Performance parameters Rated load weight (Min. distance from front wheels) Kg 4000
Distance from fork center to front wheels mm -
Max. lifting weight Kg -
Distance from lifting bolt to front wheels mm -
Max. liftinging height mm 17500
Max. front extension mm 14000
Max. running speed Km/h 30
Max. climbing ability ° 25
Machine weight Kg 13500
Working device Telescopic booms Sections 4
Stretch out time s 14
Shrinking time s 17.5
Max. lifting angle ° 70
Overall size Length (Without forks) mm 6600
Width mm 2320
Height mm 2350
Distance between shafts mm 3200
Wheels tread mm 1780
Min. ground clearance mm 350
Min.turning radius (Two wheels driving) mm 3800
Min.turning radius (Four wheels driving) mm -
Standard fork size mm 1000*125*50
Standard configuration Engine model - LR4M3LU
Rated power Kw 88.2/2400
Driving - All wheels
Turing - All wheels
Tire types (Front/Rear ) - 400/80-20

Product Details

Telehandlers are able to lift heavy loads up to the units lift capacity and height specifications including palletised and non-palletised good when fitted with the correct attachment. Whilst forklifts are one dimensional in their movement abilities, telehandlers are able to move diagonally allowing them to pick-up and transport loads that a standard forklift would be unable to lift.With their increased maneuverability telehandlers are able to easily access odd angles and tight spaces with their extendable boom, making them the ideal materials handling solution for confined spaces. Stabilisers that can be deployed from the unit, provide extra stability and safety when lifting heavy loads. Telehandlers four wheel drive features allow units to operate both on and off road. Units are fitted with large robust tyres that are able to support the lifting and transport of heavy loads whilst also providing easy travel across the rough and uneven terrain often encountered on building sites, on farms or agricultural grounds and even mining sites. Units can also be road registered which allows them to operate on marked bitumen roads so they can safely and easily transport loads to sites when off-loading from delivery trucks or between job sites. A MULTI-FUNCTION TELESCOPIC LOADER ability to hydraulically lift and maneuver large and heavy loads around sites reduces the need for employees to undertake extensive manual lifting tasks. This can greatly reduce the chances of them injuring themselves through unsafe or repetitive manual lifting. To ensure maximum safety on-site telehandlers must only be operated by fully trained and qualified operators. Operators must have undertaken correct training and hold the correct license to operate the unit safely and be able to respond quickly and safely as possible in the event of an emergency. It is also important to ensure the telehandler is not pushed beyond the manufacturer’s specified lifting capacity and heights, otherwise this greatly raises the risk of injury, product or equipment damage or even a workplace fatality. For more telehandler uses and maintenance works, please contact us for the details. Several steps before you use the telehandlers. Step1. According to your task, ground grade, wind speed, attachments, choose a suitable machine model. See the parameters, loading diagrams and the overall size of the machine. The overload is prohibited. Step 2. Install the attachment onto the end of the boom, make sure all the nuts are screwed tightly and the oil pipes well connecting without leaking. Step 3.Check all the functions to make sure all of them can move smoothly without abnormal sounds. Step 4.The other requirement please fellow the introductions.We attempt for excellence, company the customers", hopes to be the top cooperation team and dominator company for personnel, suppliers and customers, realizes price share and continual marketing for Well-designed China 2.5t Mini Hydraulic Telescopic Wheel Loader, 825t Mini Telehandler with CE, All prices depend upon the quantity of your respective order; the extra you purchase, the extra economical the rate is. We also offer fantastic OEM provider to numerous famous brands. Well-designed China Loader, Wheel Loader, Company name, is always regarding quality as company' s foundation, seeking for development via high degree of credibility , abiding by ISO quality management standard strictly, creating top-ranking company by spirit of progress-marking honesty and optimism.
